Circular E6B Flight Computer

High quality, easy-to-read circular flight planning computer for performing flight calculations. Vinyl case and instruction booklet included.

UPC Code: 855734008385
Dimensions: 6 inch diameter / 15.25 CM Diameter

E6B-CIRC_Instructions (1)

The ASA E6B Circular and its companion products for high speed and high altitude flight are specialized tools used by pilots for performing various calculations during flight planning and in-flight operations. Here’s a breakdown of each component:

ASA E6B Circular:

• This is the core flight computer, featuring a circular slide rule design made of durable plastic.
• It allows pilots to perform a wide range of calculations, including:
  • Basic arithmetic (addition, subtraction, multiplication, division)
  • Flight planning computations (distance, time, fuel consumption, wind correction)
  • Complex in-flight calculations (true airspeed, density altitude, pressure altitude, off-course correction)
  • Conversions between units (feet/meters, knots/mph, gallons/liters)

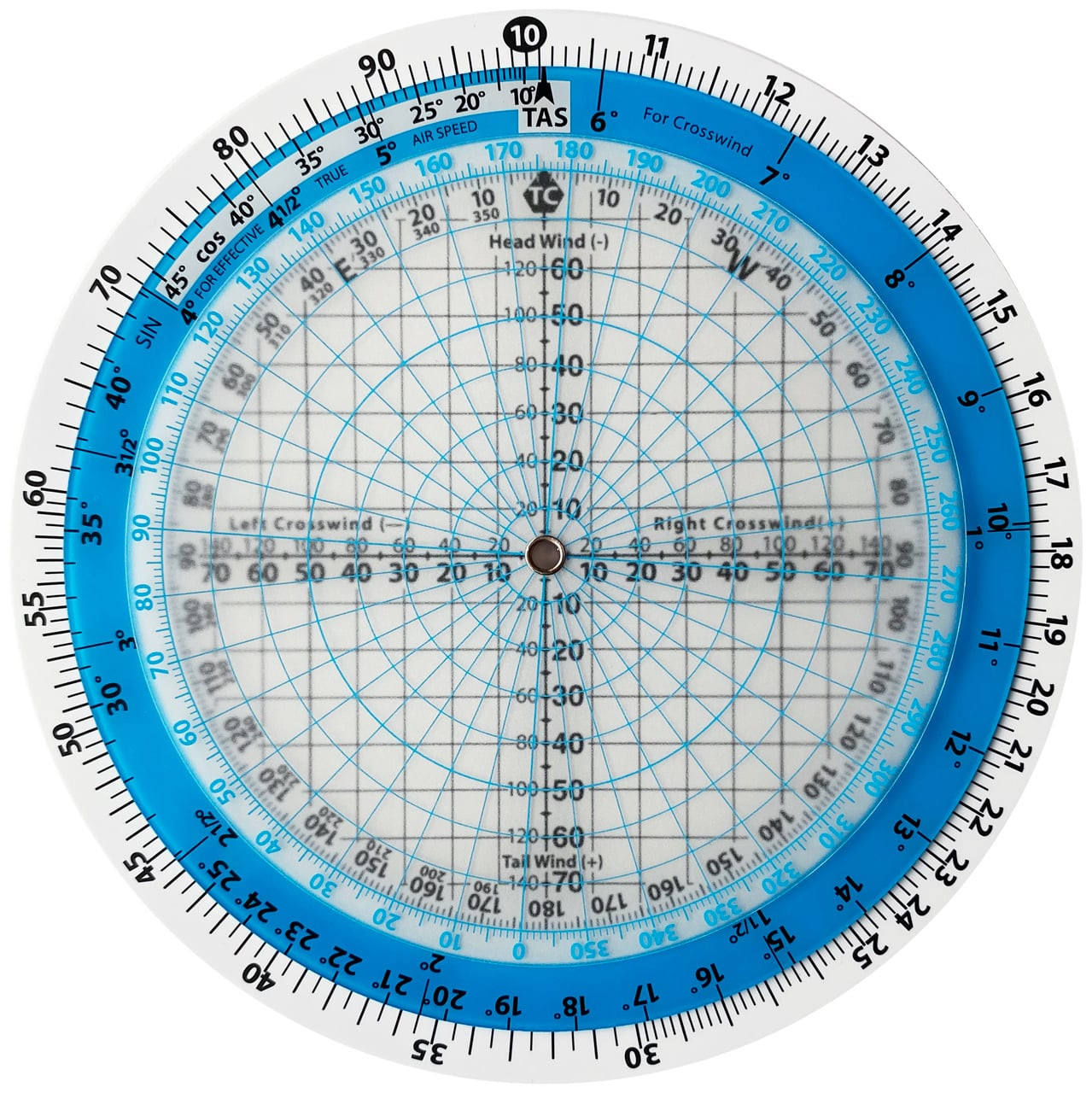

• The “wind side” of the computer uses a graphical method to solve wind-related problems, such as true airspeed, ground speed, and true heading.
• The E6B Circular is a popular choice for its ease of use, accuracy, and affordability. It’s a staple tool for most pilots but may not be sufficient for aircraft flying at very high speeds or altitudes.

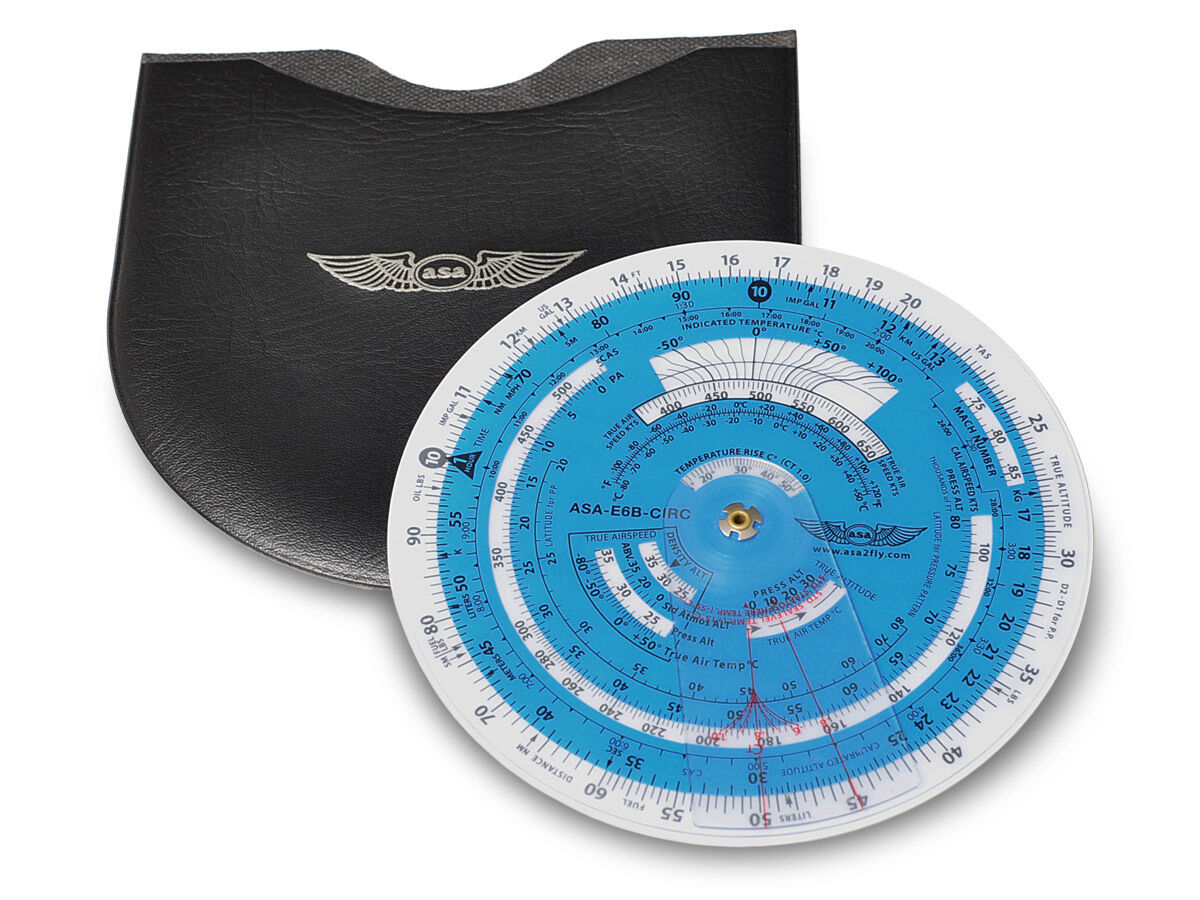

High Speed E6B Circular:

• This is a product designed for aircraft operating in the high-speed range (220-700 knots).
• This allows pilots to perform accurate calculations related to true airspeed, ground speed, time, and distance relevant to high-speed flight.
• Ideal for pilots flying jets, turboprops, and other high-performance aircraft.

High Altitude Companion:

• There isn’t a single specific “High Altitude Companion” that comes with the E6B Circular.
• However, several resources specifically address high-altitude considerations:
  • High Altitude Supplement: This booklet by the FAA provides information on the effects of high altitude on aircraft performance and flight procedures.
  • E6B Circular Instructions: The instruction manual for the E6B Circular itself often includes specific sections or examples related to high-altitude calculations.
  • Online resources: Many websites and apps offer high-altitude calculators and planning tools.

Overall:

The ASA E6B Circular, combined with the High Speed E6B Slide and knowledge of high-altitude considerations, equips pilots with a powerful toolset for accurate and efficient flight planning and navigation in a wide range of flight conditions, including high speed and high altitude environments.

Instructions for Using ASA E6-B Circular
Flight Computer………………………………………………………..4
The Calculator Side…………………………………………………..5
Basic Arithmetic ……………………………………………………….8
Multiplication………………………………………………………8
Division………………………………………………………………8
Conversions …………………………………………………………….9
Nautical to Statute Miles …………………………………….10
U.S. Gallons to Imperial Gallons………………………….11
Quantity/Weight Conversions………………………………12
Time, Speed, and Distance Problems ……………………….14
Feet Per Mile vs. Feet Per Minute ……………………………..16
Fuel Consumption Problems…………………………………….17
Using the Altitude and Speed
Correction Windows………………………………………………..19
True Airspeed and Density Altitude…………………………..19
True Altitude …………………………………………………………..21
True Air Temperature……………………………………………….21
Mach Index Arrow…………………………………………………..23
Converting Mach Number to True Airspeed……………….23
True Airspeed from Mach Number and
Indicated Air Temperature ……………………………………….24
True Altitude …………………………………………………………..25
Pressure Pattern……………………………………………………..26
Off-Course Problems ………………………………………………27
The Wind Side of the E6-B Circular …………………………..29
Addition and Subtraction …………………………………………30
Magnetic vs. True Winds………………………………………….30
Wind Triangle …………………………………………………………31
Preflight Planning ……………………………………………………31
Determining Winds in Flight ……………………………………..34
True Course and Ground Speed……………………………….37
True Heading and True Airspeed………………………………39
Off-Course Correction …………………………………………….41
Answers to Sample Problems…………………………………..45
4
Instructions for Using ASA E6-B Circular Flight
Computer
Your ASA E6-B Circular Flight Computer has two main
parts: a circular slide rule side for making quick calculations and a wind side for computing ground
speed and wind correction angle

E6B-CIRC_Instructions
